Delivering the right amount of water to the right parts of your garden can make the difference between thriving plants and wasted water. If you are wondering how to design a garden irrigation system, the key is to combine careful planning, accurate water flow calculations and the right irrigation method for each area of the garden.

1. Calculating Water Flow Rate

Before planning pipe routes or irrigation zones, the first and most important step is to determine the flow rate of your water supply.

Professionals measure this at the tap closest to the connection point using a simple volume-and-timing test. This determines how much of the garden can be safely and effectively watered at once. Without accurate flow calculations, the system may suffer from pressure drops, uneven distribution, or long-term performance issues.

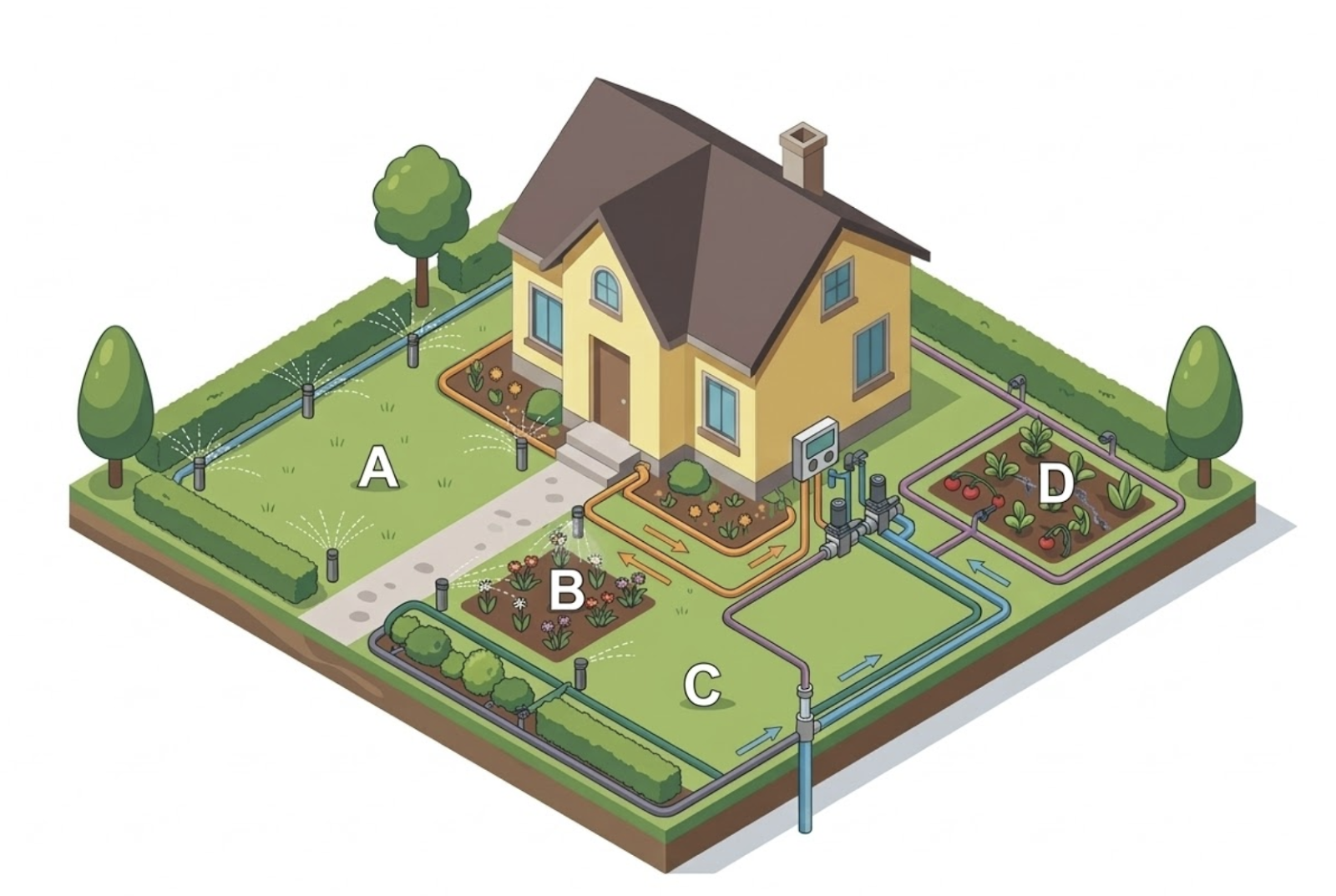

2. Creating Zones (Hydrozoning)

When learning how to design a garden irrigation system, one of the most important principles is zoning. Because of pressure limitations, a single irrigation circuit is rarely enough for an entire garden, so the system should be divided into separate watering zones that stay within the available flow rate.

The most professional approach is known as hydrozoning – grouping plants with similar water requirements together. This ensures optimal plant health while preventing both under- and overwatering.

3. Different Plants, Different Technologies

Different areas of the garden require different irrigation components:

Lawn Areas

Lawns need even water coverage, so automatic sprinklers are usually the best choice when planning a garden irrigation system.

• Sprinklers should be placed so that the water spray overlaps. This helps prevent dry spots.
• The system needs pressure balancing and the right pipe size. Without this, the sprinklers farther away may not work properly.
• Lawn zones usually need separate timing because grass needs more water than most other plants.

Vegetable Gardens

In vegetable gardens, the best solution is a drip irrigation pipe that delivers water directly to the soil.

• It reduces water loss from evaporation and does not wet the leaves, so there is less risk of fungal disease.
• The system is easy to clean if flushing valves are installed at the end points.
• Water reaches every row evenly, which is especially important for good crop yield.

Potted Plants

Potted plants usually need smaller amounts of water more frequently, so a micro-tube drip system is often the best option.

• Thin tubes branch off from the main pipe running under the terrace surface and go to each pot.
• Pressure-compensating drippers make sure each plant gets the same amount of water, even if they are placed at different points along the line.
• The system is discreet, almost invisible, and easy to expand when new plants are added.

4. Key Design Details: Filtration, Fittings and Automation

Some connections –  such as those used with drip lines –  can rely on specialist compression fittings that remain secure under pressure without hose clips. However, elbow joints (for example, around tree irrigation rings) require proper hose clamps to prevent leaks.

Inline isolation valves are essential for periodic flushing, and a high-quality filter must be installed to prevent drippers from clogging.

For maximum accuracy and convenience, each irrigation zone should be controlled by an automatic timer. This ensures consistent watering schedules and allows adjustments based on seasonal requirements.

5. Can I Design a Garden Irrigation System Myself?

In theory, yes. In practice, designing an efficient system is rarely as straightforward as it seems. Even small planning mistakes, such as undersized pipework, poor zone layout or inadequate filtration, can lead to uneven watering, leaks, blockages or costly repairs later on.
